The Official Eddie Van Halen Kill Switch is here!
The EVH Kill Switch features an internal LED and has a built-in resistor which allows any 9V battery to be connected directly to the switch without using any additional external resistor. You can use the switch with or without a 9V battery, as the kill switch functions separately from the LED. So it will still work if the battery runs out or becomes disconnected. When used with active pickups and/or a stereo output jack (not included), the EVH Kill Switch does not require the included on/off rocker switch.
EVH KILLSWITCH WIRING INSERT (PDF)

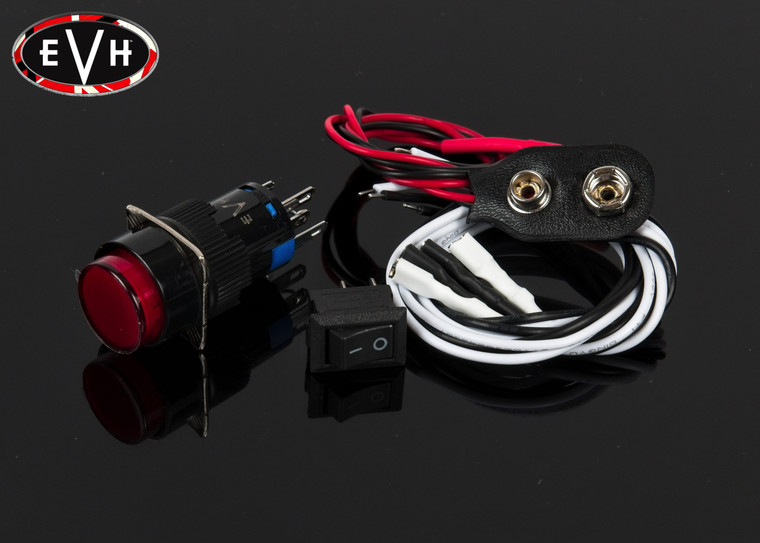

This kit includes:*
(1) 16mm Momentary Guitar Kill Switch – This is the same kill switch on the EVH Wolfgang and 5150 Guitars.
(1) Quick-Connect wiring bundle that includes:
(1) Black ground wire
(1) White hot wire
(1) 9V Battery Harness
(1) On/Off Rocker Switch
(1) Set of easy-to-follow wiring instructions
* 9V battery not included
EVH Kill Switch Specs:
- Type: Momentary Push Button Switch
- Operation Type: Normally Open (yes, this is correct for instrument kill switch operation. Included instructions show you how to wire it properly!)
- Housing Material: Plastic
- Mounting hole Size: 16mm (5/8”)
- Mounting Panel Thickness: 1mm-6mm
- Operation Pressure: about 5n
- Operation Stroke: about 3mm
- LED Rated Voltage: 12V
- LED Life: About 40,000 hours
- LED Power Draw: 15mA
- Contact Resistance: <50 mOhm
- Mechanical Life: 1,000,000 cycles
- Switch Rating: 3A/36VDC
*A 16mm (5/8″) diameter hole is required for installation.
