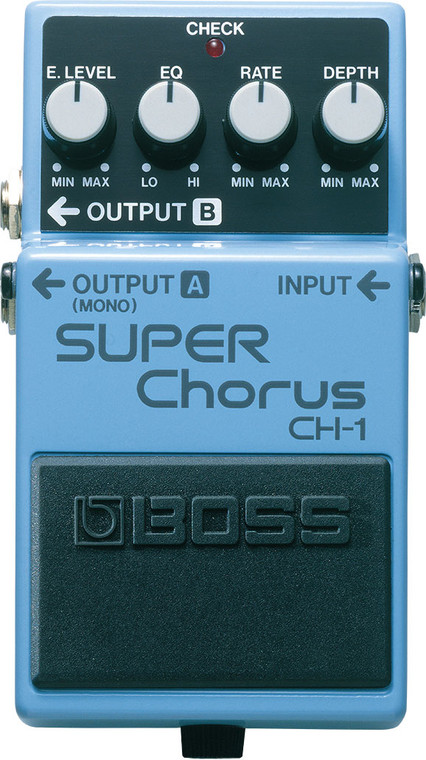

Boss CH-1 Super Chorus Pedal

The CH-1 Super Chorus pedal delivers a clean classic chorus sound with crystal-clear highs and a unique stereo effect, variable between left and right speakers.

SPECIFICATIONS

Nominal Input Level: -20 dBu

Input Impedance: 1 M ohm

Nominal Output Level: -20 dBu

Output Impedance: 1 k ohm

Recommended Load Impedance: 10 k ohms or greater

Controls: Pedal switch, DEPTH knob, Rate knob, EQ knob, E.LEVEL knob

Indicators: CHECK indicator (Used for indication of check battery)

Connectors: INPUT jack (1/4"), OUTPUT jack (1/4"), DC IN jack

Power Supply: Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9V, 6LR61), AC adaptor (soldseparately)

Current Draw: 25 mA

Expected battery life under continuous use: Carbon, Approx. 11.5 hrs; Alkaline, Approx. 26 hrs

Accessories: Owner's Manual, Leaflet ("USING THE UNITSAFELY," "IMPORTANT NOTES," and "Information"), Carbon-zinc battery (9V, 6F22)

Option (sold separately): AC adaptor (PSA series)

SIZE AND WEIGHT

Width: 73 mm, 2-7/8 inches

Depth: 129 mm, 5-1/8 inches

Height: 59 mm, 2-3/8 inches

Weight (including battery): 400 g, 0.8 lb
